VERTICAL MACHINING CENTER

Model	Table size	Max. Table Load	Spindle speeds
VMC-650L	800 x 450 mm	450 kg	8000 rpm
VMC-850L	1000 x 450 mm	500 kg	8000 rpm

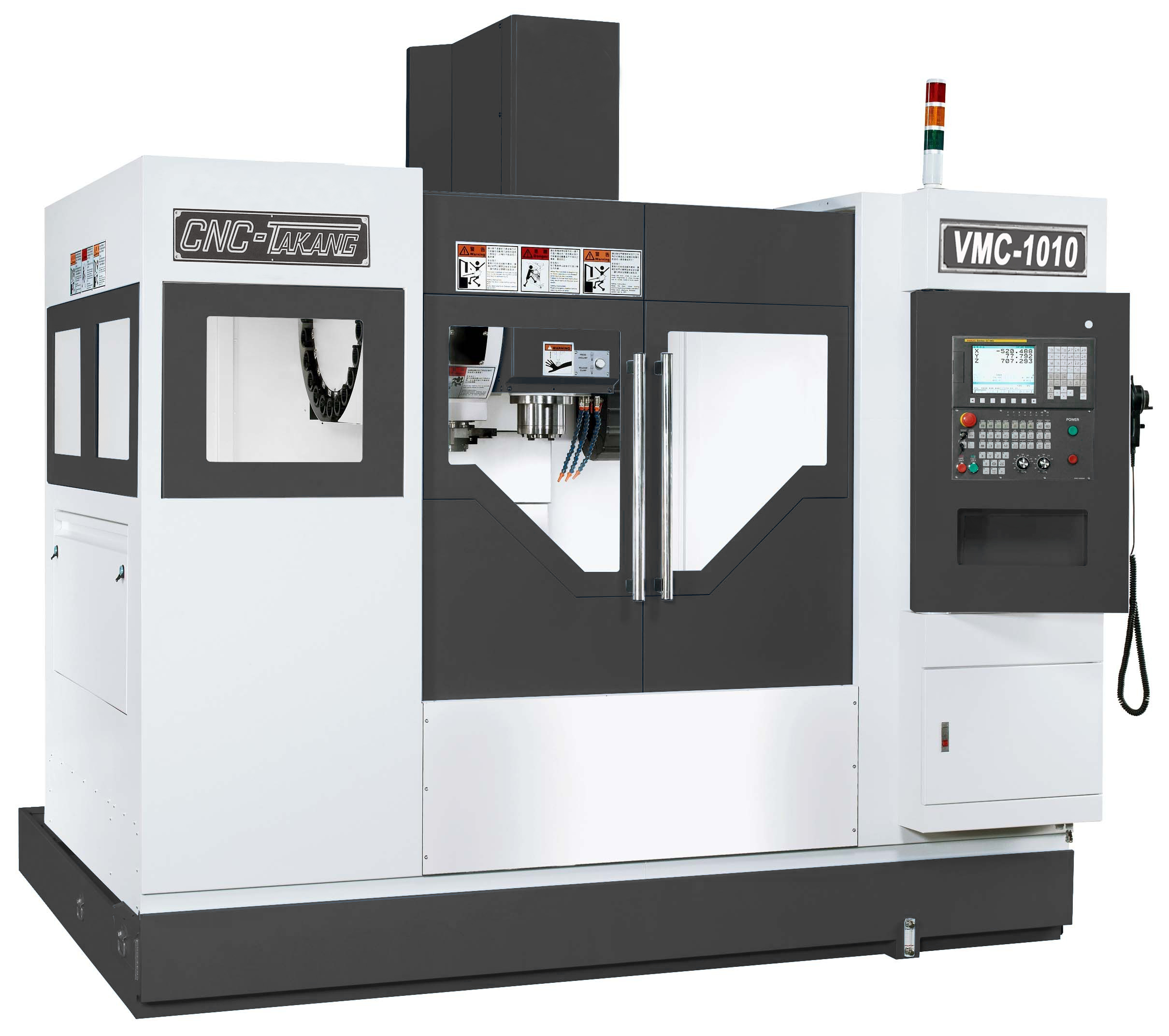

VMC-1010	1200 x 450 mm	600 kg	8000 rpm

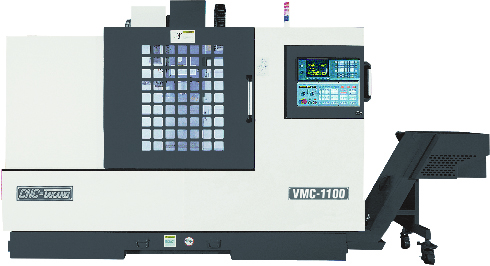

VMC-1100	1300 x 610 mm (51.1 x 24 inch)	850 kgs
VMC-1300	1400 x 610 mm (57 x 24 inch)	850 kgs
VMC-1100S	1300 x 700	1000 kgs
VMC-1270S	1500 x 700	1200 kgs
VMC-1400S	1600 x 700	1500 kgs
VMC-1500S	1700 x 850	2000 kgs

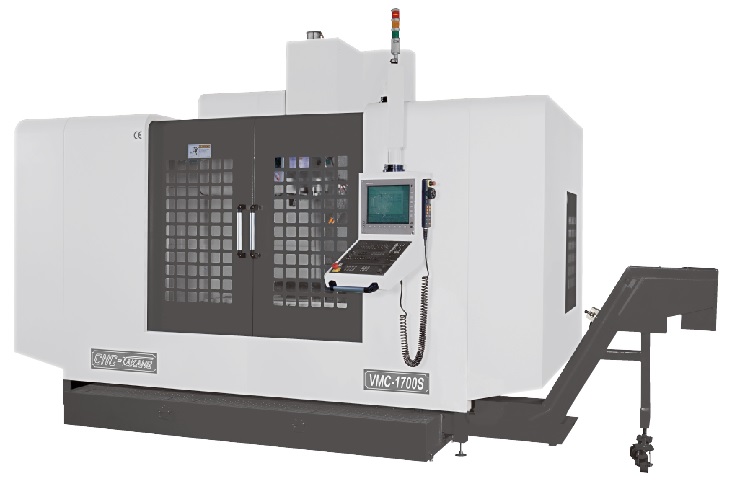

VMC-1700S	2000 x 850	2500 kgs
VMC-2000S	2200 x 850	3000 kgs

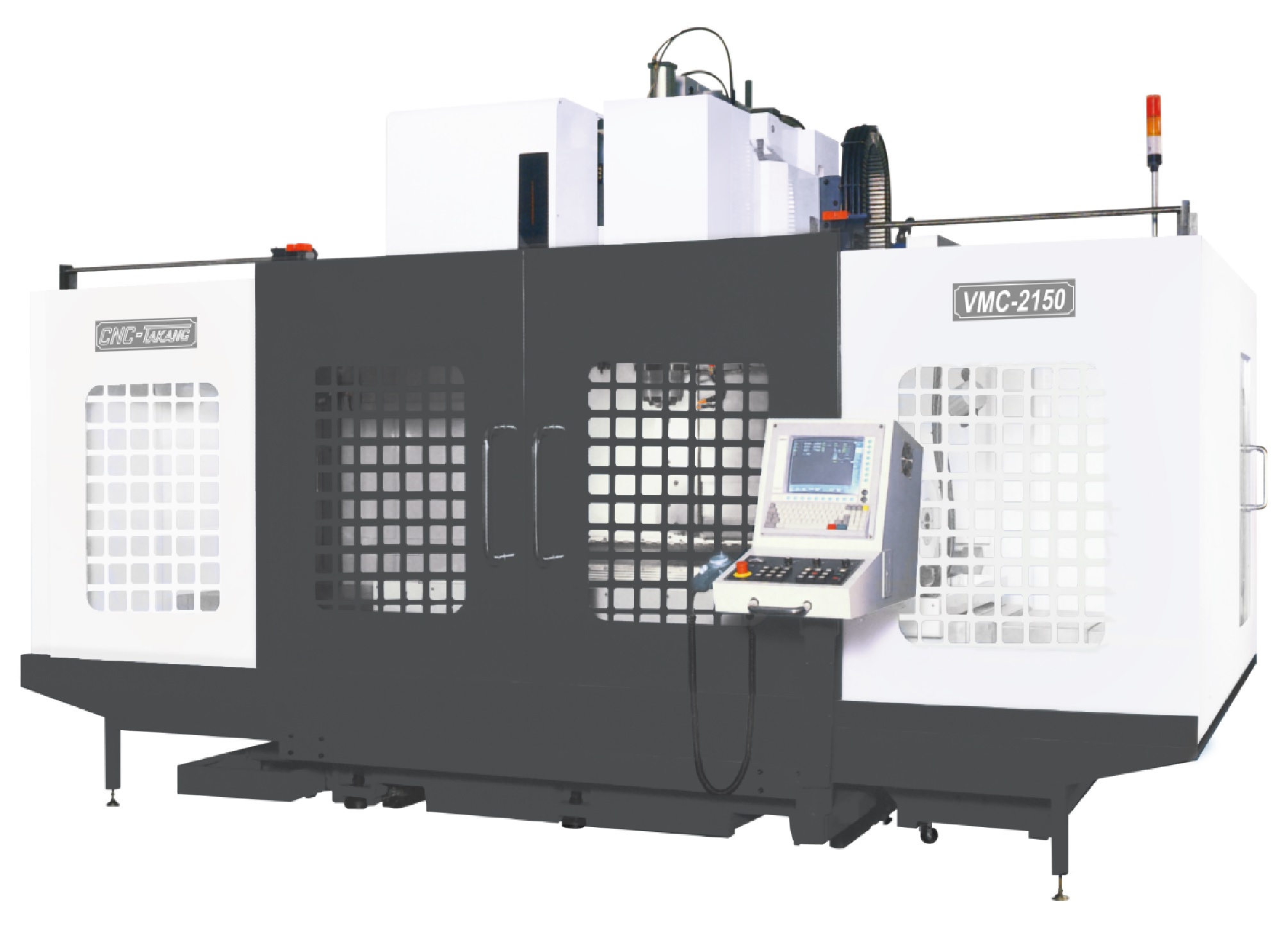

VMC-2150	2200 mm x 1220 mm	2500 kgs	6000 rpm (opt. 10000 rpm)
VMC-2600	2650 mm x 1220 mm	23000 kgs	6000 rpm (opt. 10000 rpm)
VMC-3200	3250 mm x 1220 mm	3500 kgs	6000 rpm (opt. 10000 rpm)
VMC-600APC	600 x 400 mm
VMC-860APC	850 x 500 mm

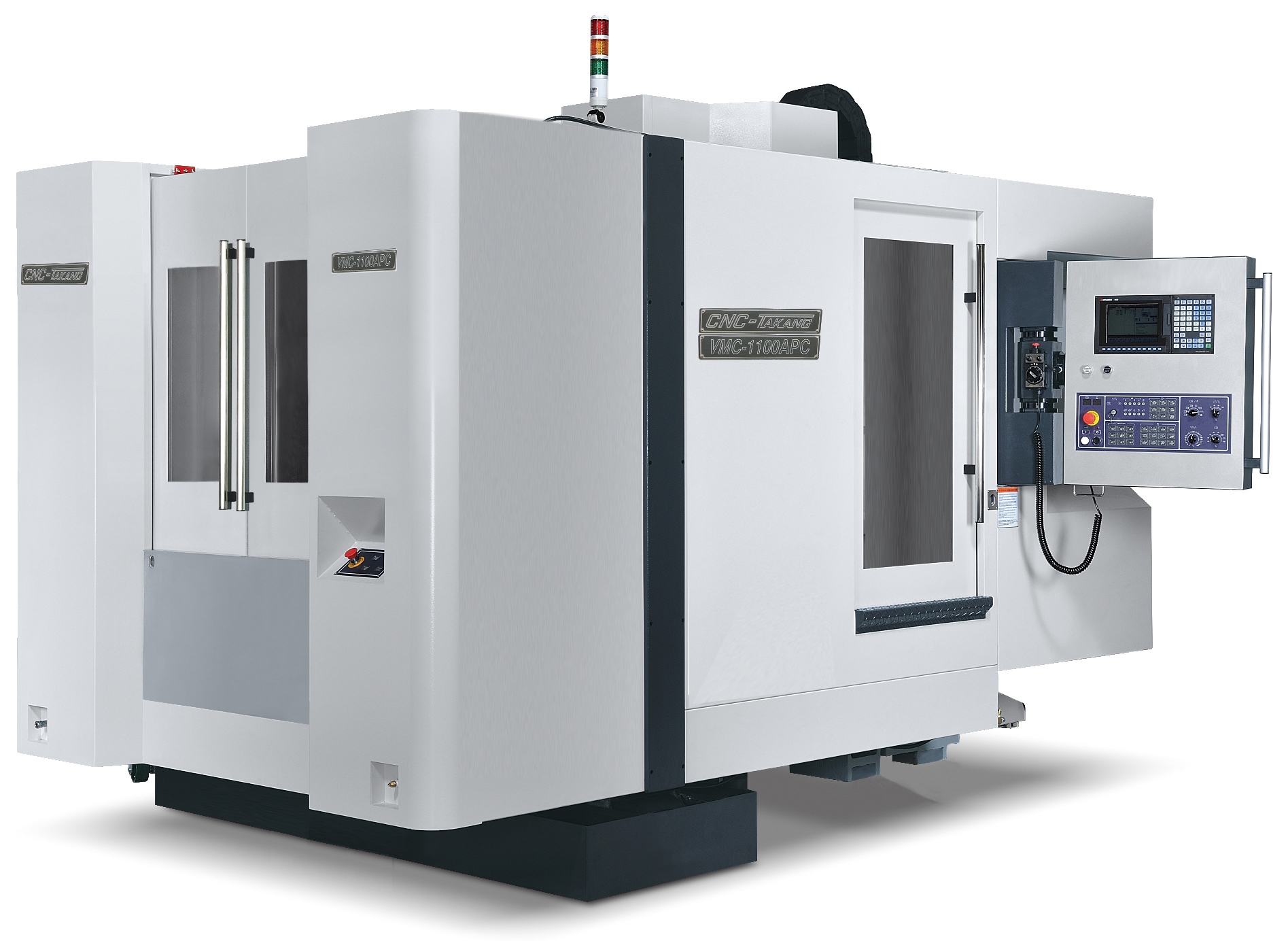

VMC-1100APC	1000 x 500 mm

※ The specifications are subject to change without prior notice.

CNC-TAKANG offers a range of vertical machining centers designed for high precision and efficiency. These machines feature a rigid structure for precise processing and can be equipped with indexing or rotary tables for multi-directional machining.
Models like the VMC-650L and VMC-2150 cater to various operational needs, with specifications such as table sizes ranging from 800 x 450 mm to 2200 x 1220 mm and load capacities up to 2500 kg. Constructed with high-quality Meehanite castings and tempered for stability, they ensure accuracy during high-speed operations.
