重切削车床
MENU
| Capacity | |
|---|---|
| Swing over Bed | 660 mm (26＂) |
| Swing over cross slide | 370 mm (14.5＂) |
| Center height | 330 mm (13＂) |
| Distance between centers | 1520mm (60”), 2030mm (80”), 3050mm (120”), 4050mm (159”), 5050mm (199”),6050mm (238.2”) |
| Bed width | 480 mm (18.9＂) |
| Width of cross slide | 280 mm (11＂) |
| Spindle | |
| Spindle speed / A2-11(4") | 25~1200 rpm |
| Spindle center | MT5 |
| Carriage | |
| Turret | H4 or V8 Hydraulic |
| Tool size | H4 or V8 25x25 |
| X axis Travel | 400 mm (15.7＂) |
| Z axis Travel | 1380mm (54”), 1890mm (74”), 2910mm (115”), 3910mm (154”), 4910mm (193”), 5910mm (232.7”) |
| X axis rapid travel, Ball screw dia. | 6M / min dia. 32 x P5 |
| Z axis rapid travel, Ball screw dia. | 6M / min dia. 50 x P10 |
| Tailstock | |
| Quill diameter | 105 mm (4.1＂), OPT Rotating quill dia. 155 mm (6.1＂) |
| Quill travel | 200 mm (8＂) |
| Quill taper | MT6 |
| Motor | |
| X axis servo motor | 1.5M~4M FANUC αiF8 1.6 kw, 5M~6M FANUC αiF12 3.0 kw |
| Z axis servo motor | 1.5M~4M FANUC αiF12 3.0 kw, 5M~6M FANUC αiF22 4.0 kw |
| Spindle motor | FANUC αiI15 15/18.5 kw, OPT 18.5/22 kw, 22/26 kw |
| Coolant pump | 0.455 kw |
| Hydraulic pump | 1 kw |
| Machine weight | |
| 1500 / 1200 mm center distance | 6250 kgs |
| Each extra 500mm weight | 500 kgs |
※ 规格如有变更，恕不另行通知。
特性

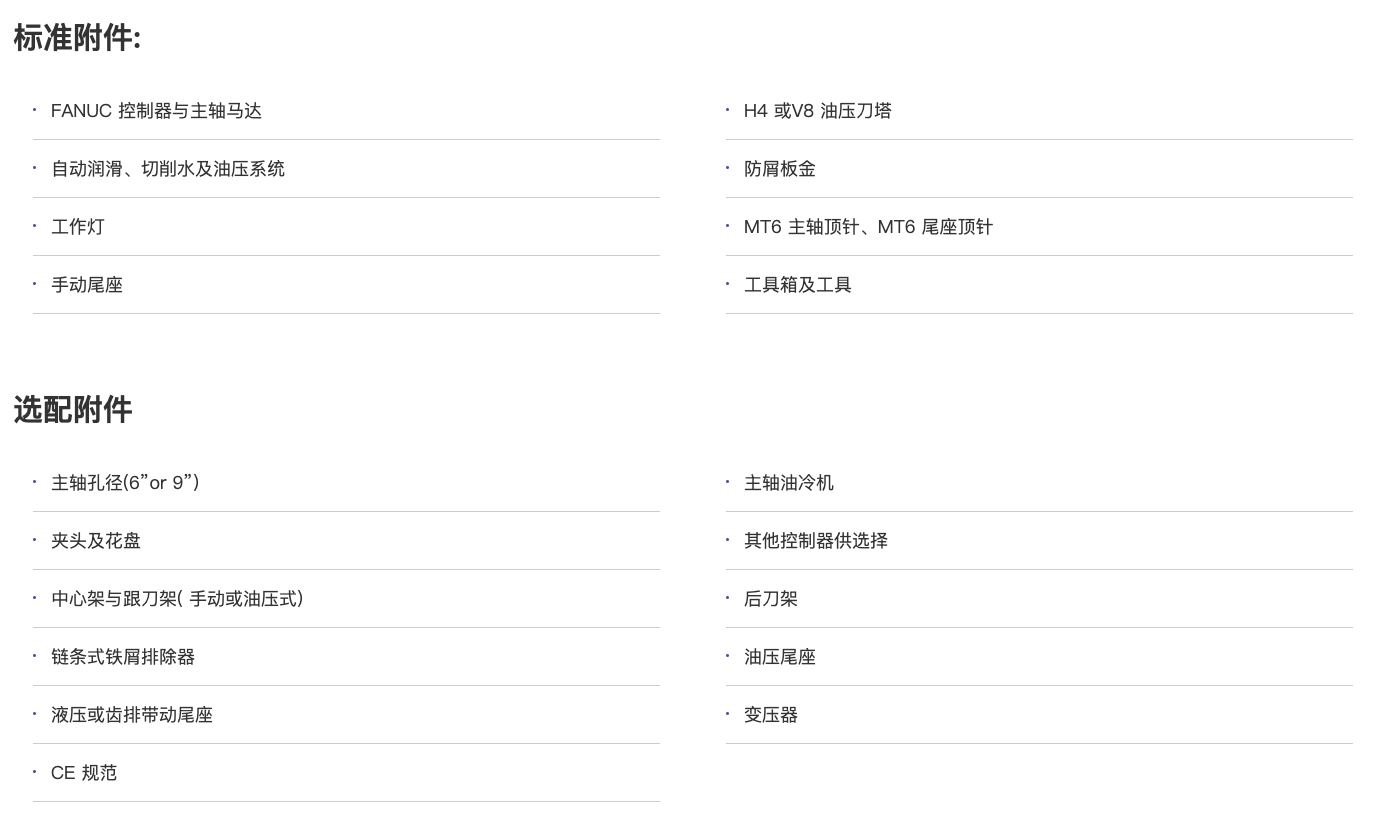

配件选择说明
LA 26
