SLANT BED CNC LATHE

TNC35x3140

Heavy-duty specification with max. cutting diameter 500mm.
High-Speed indexing and positioning idle time.
45 degree slant bed provides easier chip removal.
The powerful and rigid spindle offer max. speed 2500rpm.

INQUIRY

Capacity
Swing over Bed	660mm (25.9”)
Swing over cross slide	480mm (18.9”)
Max. turning diameter	500mm (19.6”)
Working length	3040mm (119.6”)
Spindle
Spindle nose	A2-8 / Opt. A2-11
Spindle bore	Dia. 105mm (4.1”) / Opt. 131mm (5.1”), 165mm (6.5”)
Bar capacity	Dia. 89mm (3.5”) / Opt. 117mm (4.6), 142mm (5.6)
Max. spindle speed	2500 rpm / Opt. 2000 , 1650 rpm
Spindle gearbox step	2
Turret
Turret type	V10 / Opt. V12
Tool size	32mm (1.25”) / Opt. 25mm (1”)
ID Tool holder dia.	Dia. 50mm (2”)
Tailstock
Tailstock travel	2920mm (114.9”)
Quill stroke	100mm (3.9”)
Quill diameter	110mm (4.3”)
Taper of center	MT5
Motor
Spindle	22 / 26 Kw
X / Z axis servo motor	4 / 4 Kw
Coolant pump	0.75 Kw
Hydraulic pump	2.2 Kw

Hydraulic chuck size	Std. 12” / Opt. 15”
X / Z axis
X axis travel	250+25mm (9.84+1”)
Z axis travel	3140mm (123.6”)
X / Z axis rapid travel	X: 12 M/min Z: 12 M/min
X / Z axis ball screw	Dia. 40mm x P6 / Dia. 63mm x P10
Cutting feed rate	0.001～500 mm/min
Dimension
Machine dimension	7584×2130×2235mm
Machine weight NW/GW	16300 / 18700kgs

※ The specifications are subject to change without prior notice.

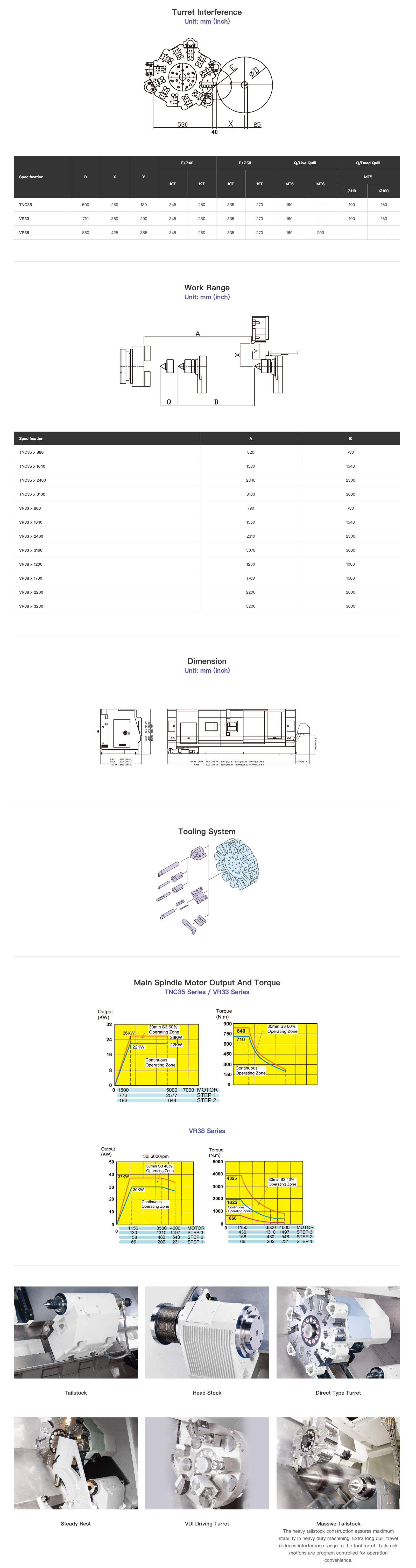

Features

Maximum cutting diameter 500mm
High rigidity & heavy cutting
45 degree inclined bed structure good for chip removal
High rigidity spindle maximum speed 2500rpm
