 | TK450 | 460mm (18.1”) | 290mm (11.4”) | | 640mm (25”), Opt. | 1000mm/1500mm/2000mm(40”, 60”, 80”) |
 | TK540 | 540mm (21”) | 360mm (14”) | | 720mm (28.3”), Opt. | 1000mm/1500mm/2000mm/3000mm(40”, 60”, 80”, 120”) |

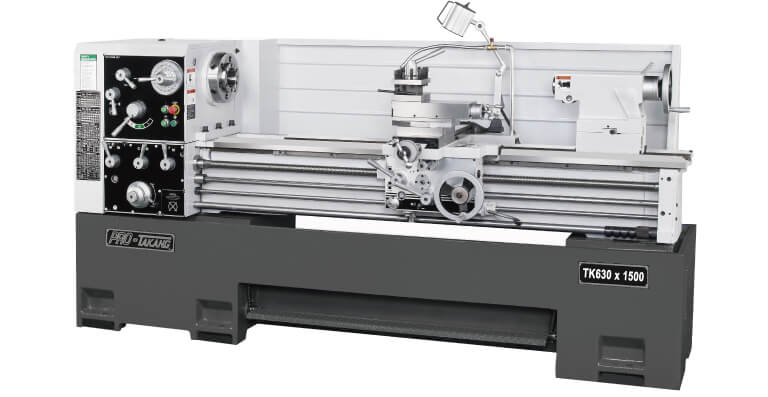

 | TK630 | 630mm (25”) | 450mm (17.7”) | | 810mm (31.9”), Opt. | 1000mm/1500mm/2000mm/3000mm(40”, 60”, 80”, 120”) |
 | TK-770N | | | 385mm (15.2”) | | |
 | TK-840N | | | 420mm (16.5”) | | |
 | TK600 | 600 mm (23.6”) | 390 mm (15.3”) | 300 mm (11.8”) | 820 mm (32.2”) | |

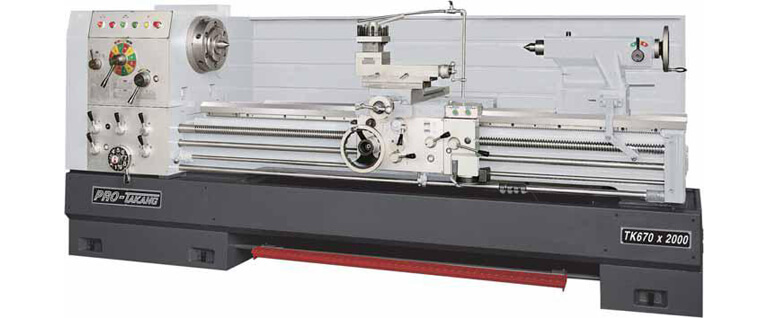

 | TK670 | 670 mm (26.3”) | 460 mm (18.1”) | 335 mm (13.2”) | 890 mm (35”) | |
 | TK770 | 770 mm (30.3”) | 560 mm (22”) | 385 mm (15.2”) | 990 mm (38.9”) | |

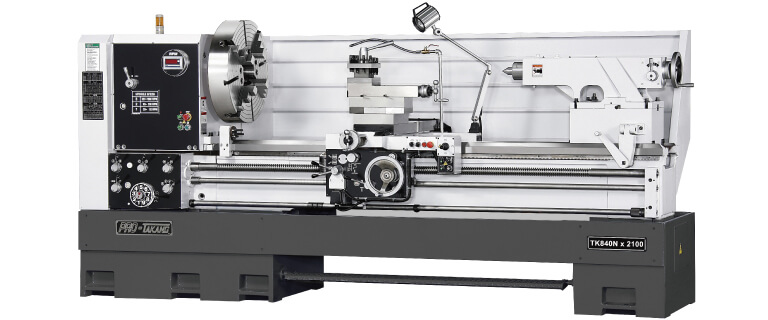

 | TK840 | 840 mm (33”) | 630 mm (24.8”) | 420 mm (16.5”) | 1060 mm (41.7”) | |
 | TK960 | 960 mm (37.7”) | 650 mm (25.5”) | 480 mm (18.8”) | 1510 mm (59.4”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M |
 | TK1060 | 1060 mm (41.7”) | 750 mm (29.5”) | 530 mm (20.8”) | 1610 mm (63.3”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M |
 | TK1200 | 1170 mm (46”) | 860 mm (33.8”) | 585 mm (23”) | 1720 mm (67.7”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M |
 | TK1200N | 1190 mm (46.8”) | 830 mm (32.6”) | 600 mm (23.6”) | 1750 mm (68.8”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M, 10M, 11M, 12M, 13M, 14M |
 | TK1400N | 1385 mm (54.5”) | 1030 mm (40.5”) | 700 mm (27.5”) | 1950 mm (76.7”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M, 10M, 11M, 12M, 13M, 14M |
 | TK1600N | 1580 mm (62.2”) | 1230 mm (48.4”) | 800 mm (31.4”) | 2150 mm (84.6”) | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M, 10M, 11M, 12M, 13M, 14M |
 | TK1800N | 1775 mm (69.88”) | | 900 mm (35.43”) | | 3000 – 12000 mm (120 – 480“) |
 | TK2000N | 1975 mm (77.75”) | | 1000 mm (39.37”) | | 3000 – 12000 mm (120 – 480“) |
 | TK2500N | 2500 mm (98.42”) | | 1250 mm (49.21”) | | 3000 – 12000 mm (120 – 480“) |
 | TK1070 | 1070 mm (42”) | 744 mm (29”) | | 1520 mm (60”) | 1700 mm / 2200 mm / 3200 mm / 4200 mm / 5200 mm / 6200 mm / 7200 mm / 8200 mm(70” / 87” / 126” / 165” / 205” / 244” / 283” / 323”) |
 | TK1270 | 1270 mm (50”) | 944 mm (37”) | | 1720 mm (68”) | 1700 mm / 2200 mm / 3200 mm / 4200 mm / 5200 mm / 6200 mm / 7200 mm / 8200 mm(70” / 87” / 126” / 165” / 205” / 244” / 283” / 323”) |
 | TK1500 | 1500 mm (59”) | 1100 mm (43”) | | 1950 mm (77”) | 1700 mm / 2200 mm / 3200 mm / 4200 mm / 5200 mm / 6200 mm / 7200 mm / 8200 mm(70” / 87” / 126” / 165” / 205” / 244” / 283” / 323”) |
