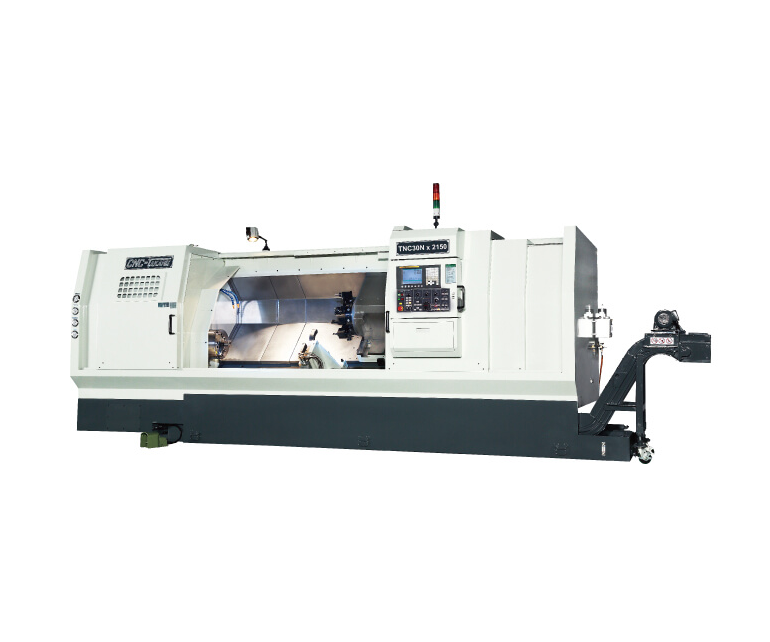

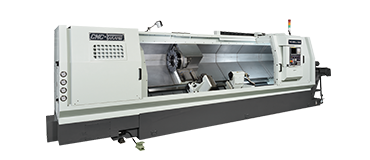

SLANT BED CNC LATHE

Model	Swing over Bed	Swing over cross slide	Spindle nose	Bar capacity
TNC-30N / 30NL	Ø 640 mm (25.2”)	Ø 430 mm (16.9”)	A2-8	Ø 75 mm (3”)
TNC30N x 1650 / 2150 / 2650	Ø 600 mm (23.6”)	Ø 430 mm (16.9”)	A2-8	Ø 75 mm (3”)

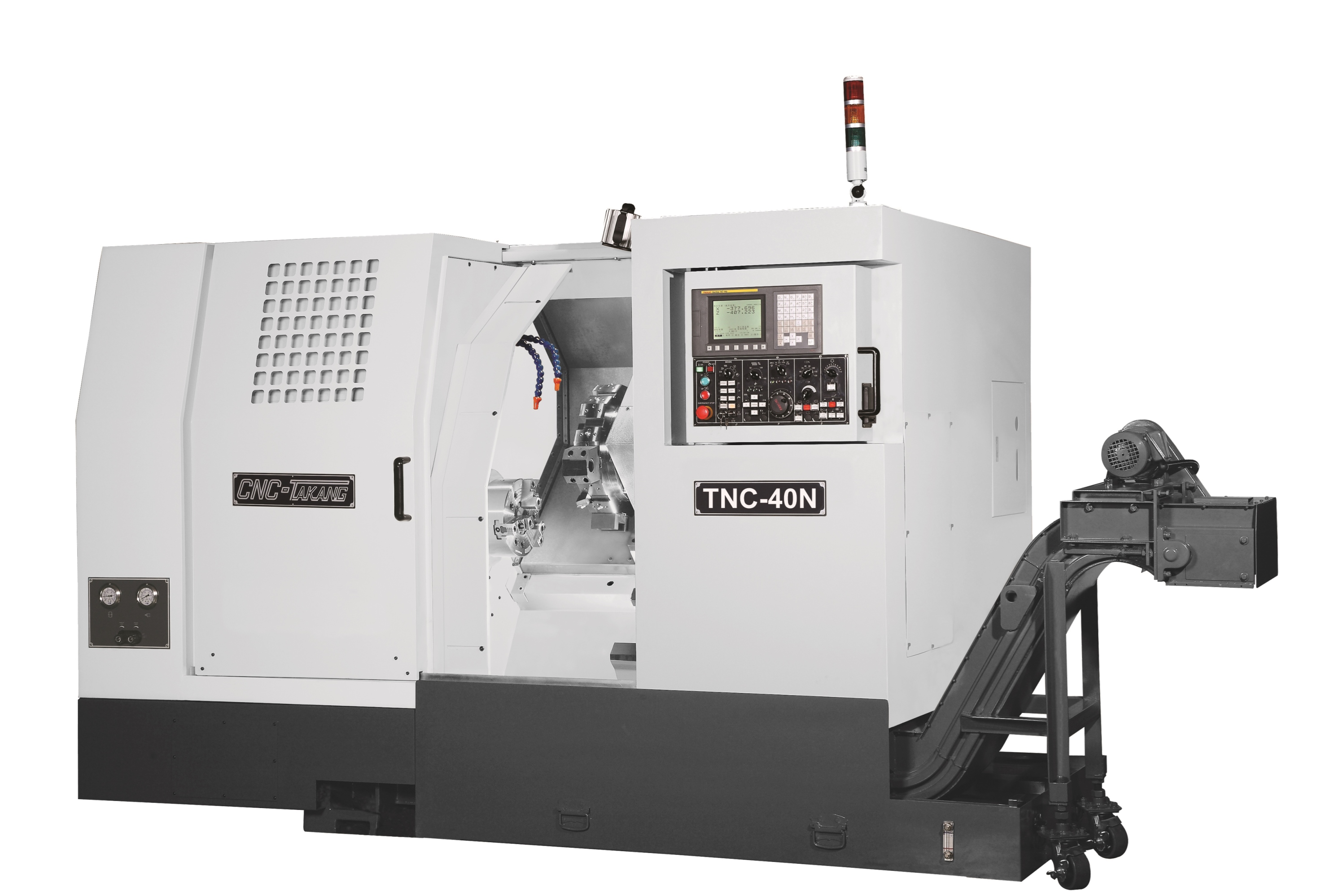

TNC-40N / 40NL	Ø 640 mm (25.2”)	Ø 430 mm (16.9”)	A2-8	Ø 90 mm (3.5”)
TNC40N x 1650 / 2150 / 2650	Ø 600 mm (23.6”)	Ø 430 mm (16.9”)	A2-8	Ø 90 mm (3.5”)
TNC-40NE x 650 / 1150	Ø 800 mm (31.5”)	Ø 590 mm (23.2”)	A2-8 / OPT A2-11
TNC40NE x 1650 / 2150 / 2650	Ø 750 mm (29.5”)	Ø 590 mm (23.2”)	A2-8 / OPT A2-11

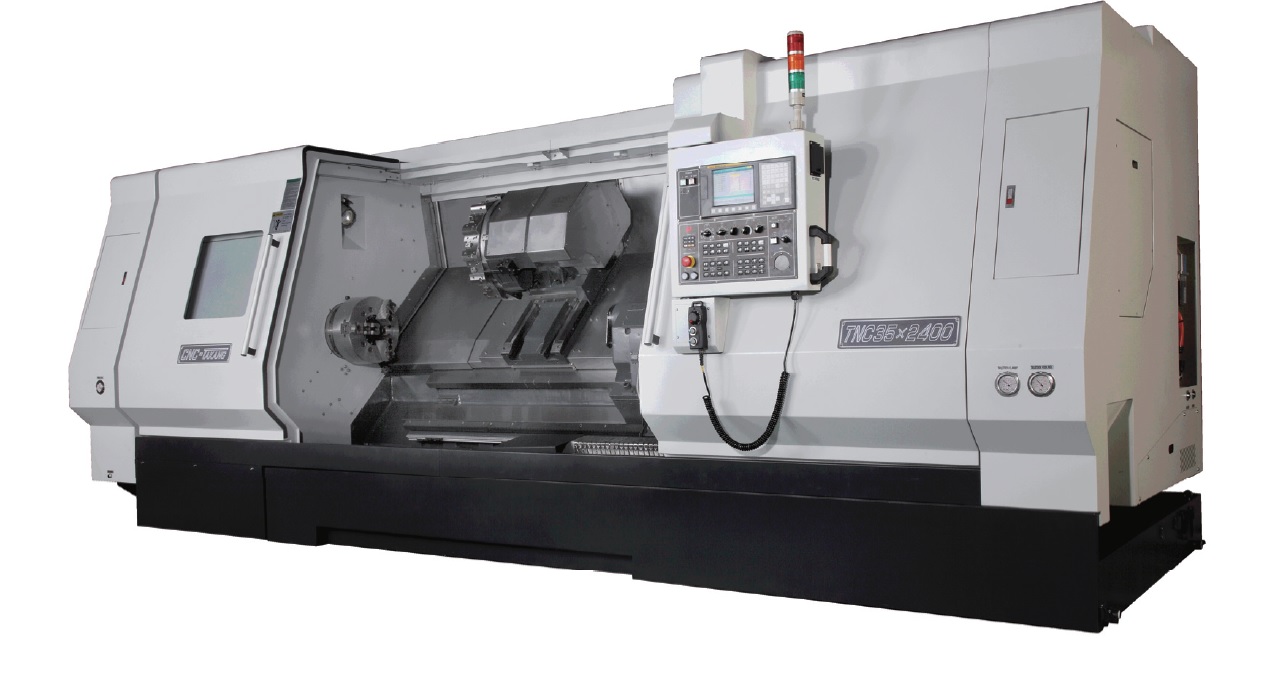

TNC35x860	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
TNC35x1620	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
TNC35x2380	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
TNC35x3140	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
TNC35x4140	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
TNC35x5140	660mm (25.9”)	480mm (18.9”)	A2-8 / Opt. A2-11
VR33x860	850mm (33.4”)	660mm (26”)	A2-8
VR33x1620	850mm (33.4”)	660mm (26”)	A2-8
VR33x2380	850mm (33.4”)	660mm (26”)	Opt. A2-11
VR33x3140	850mm (33.4”)	660mm (26”)	Opt. A2-11
VR33x4140	850mm (33.4”)	660mm (26”)	Opt. A2-11
VR33x5140	850mm (33.4”)	660mm (26”)	Opt. A2-15

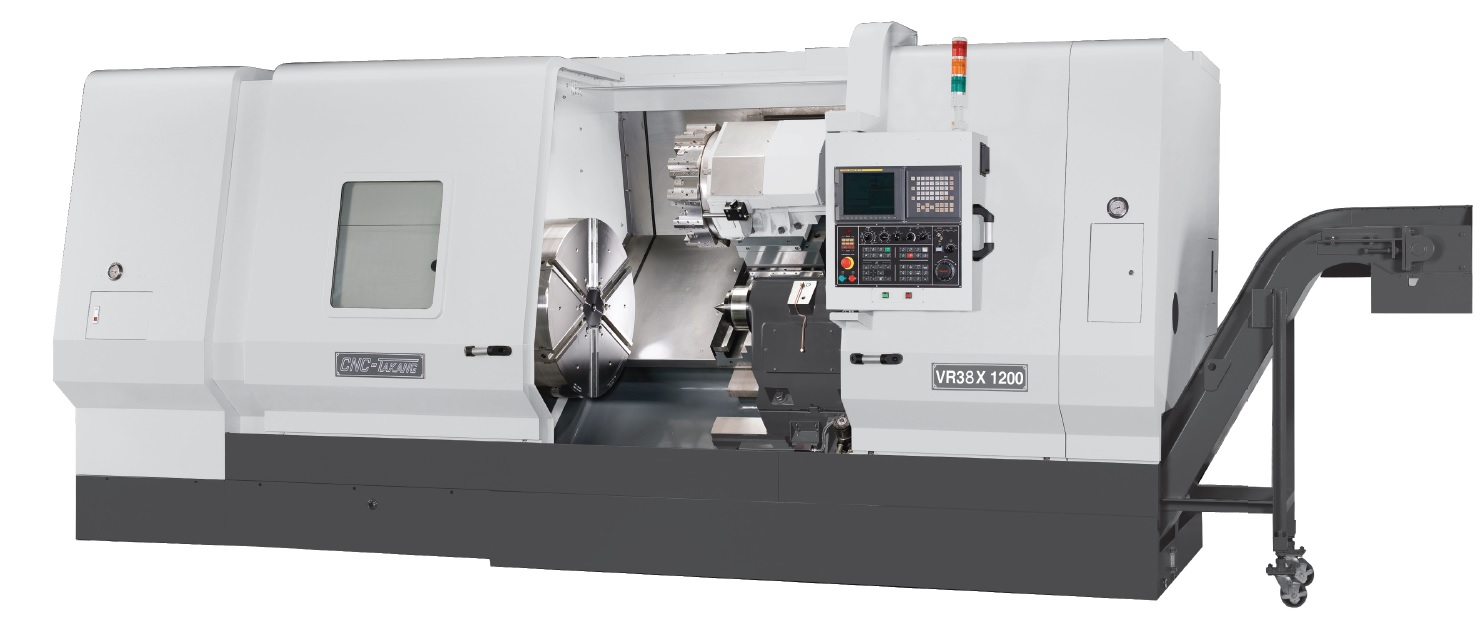

VR38x1250	970mm (38.1”)	720mm (28.3”)	A2-11
VR38x1750	970mm (38.1”)	720mm (28.3”)	A2-11
VR38x2250	970mm (38.1”)	720mm (28.3”)	Opt. A2-15
VR38x3210	970mm (38.1”)	720mm (28.3”)	Opt. A2-15
VR38x4150	970mm (38.1”)	720mm (28.3”)	Opt. A2-20
VR38x5150	970mm (38.1”)	720mm (28.3”)	Opt. A2-20
VR43x2260	1100mm (43”)	940mm (28.3”)	A2-11
VR43x3220	1100mm (43”)	940mm (28.3”)	Opt. A2-15

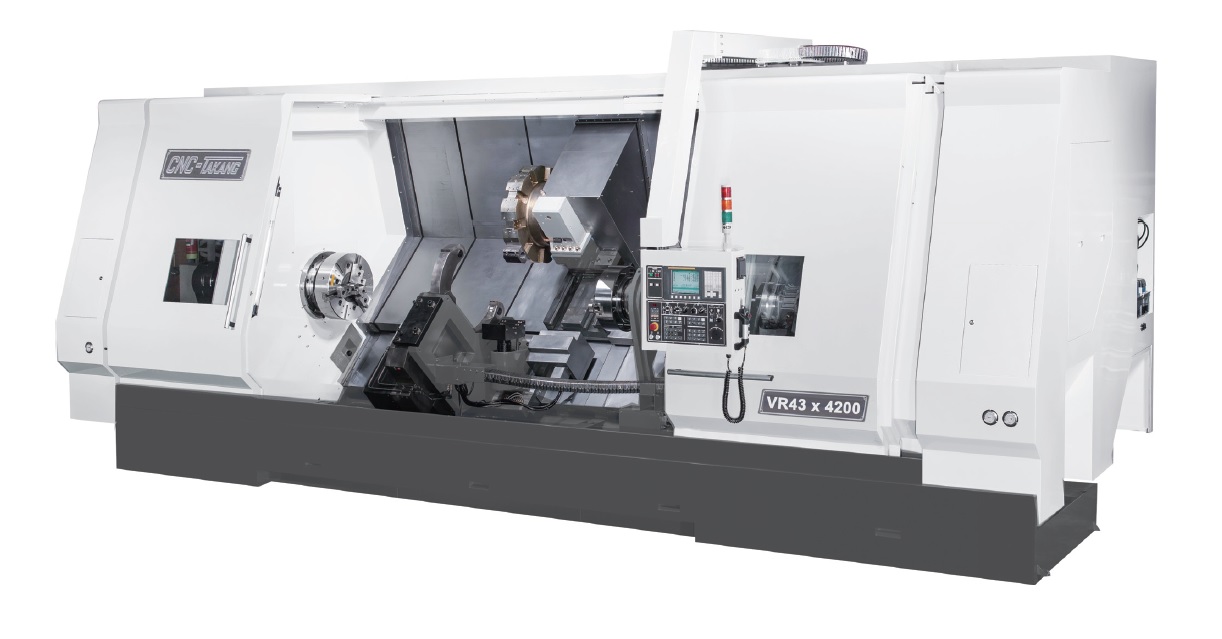

VR43x4200	1100mm (43”)	940mm (28.3”)	Opt. A2-20
VR43x5190	1100mm (43”)	940mm (28.3”)	Opt. A2-20

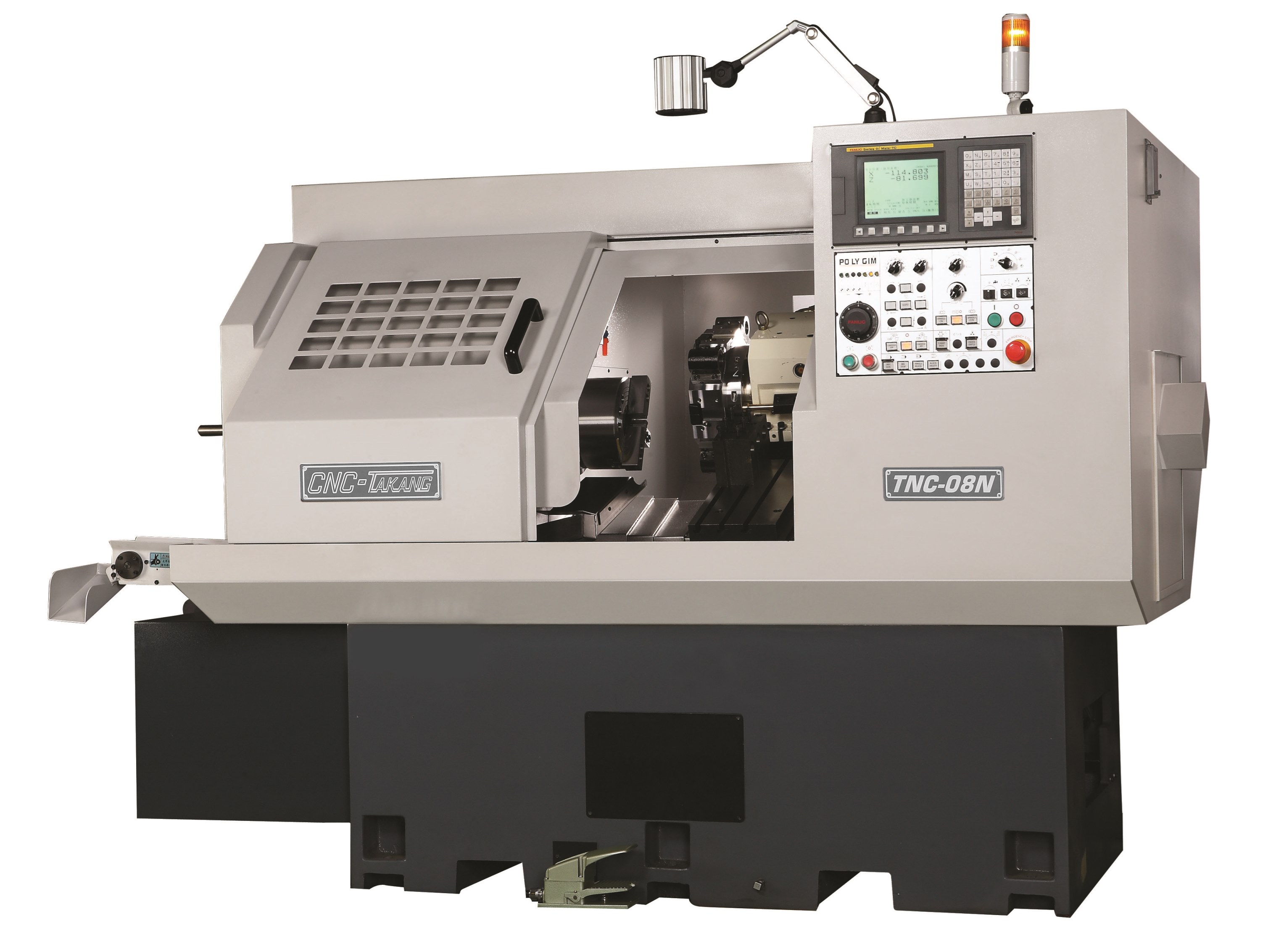

TNC-08N	400 mm		A2-6	Ø 52 mm

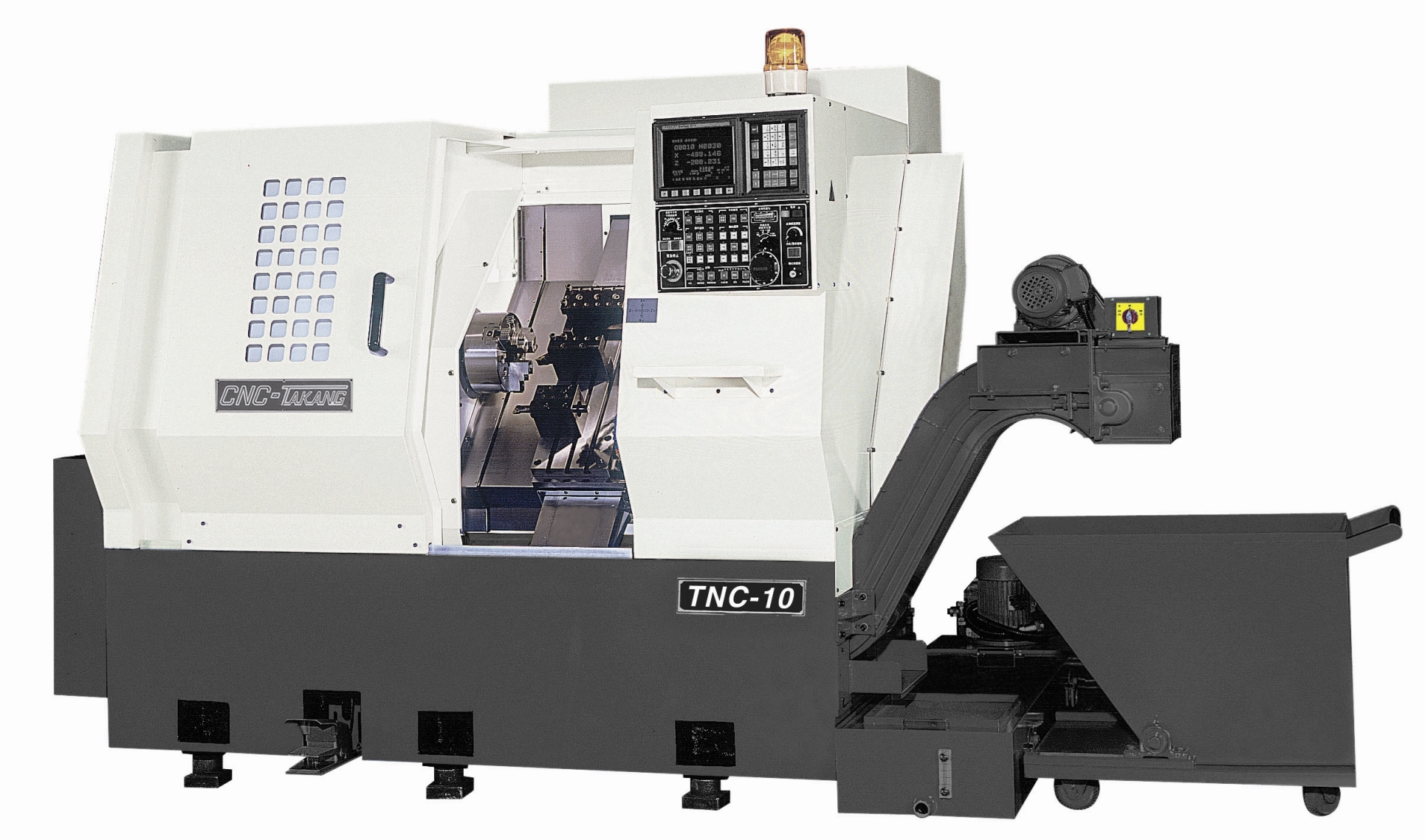

TNC-10			A2-5
TNC-10A			A2-6
TNC-15			A2-8

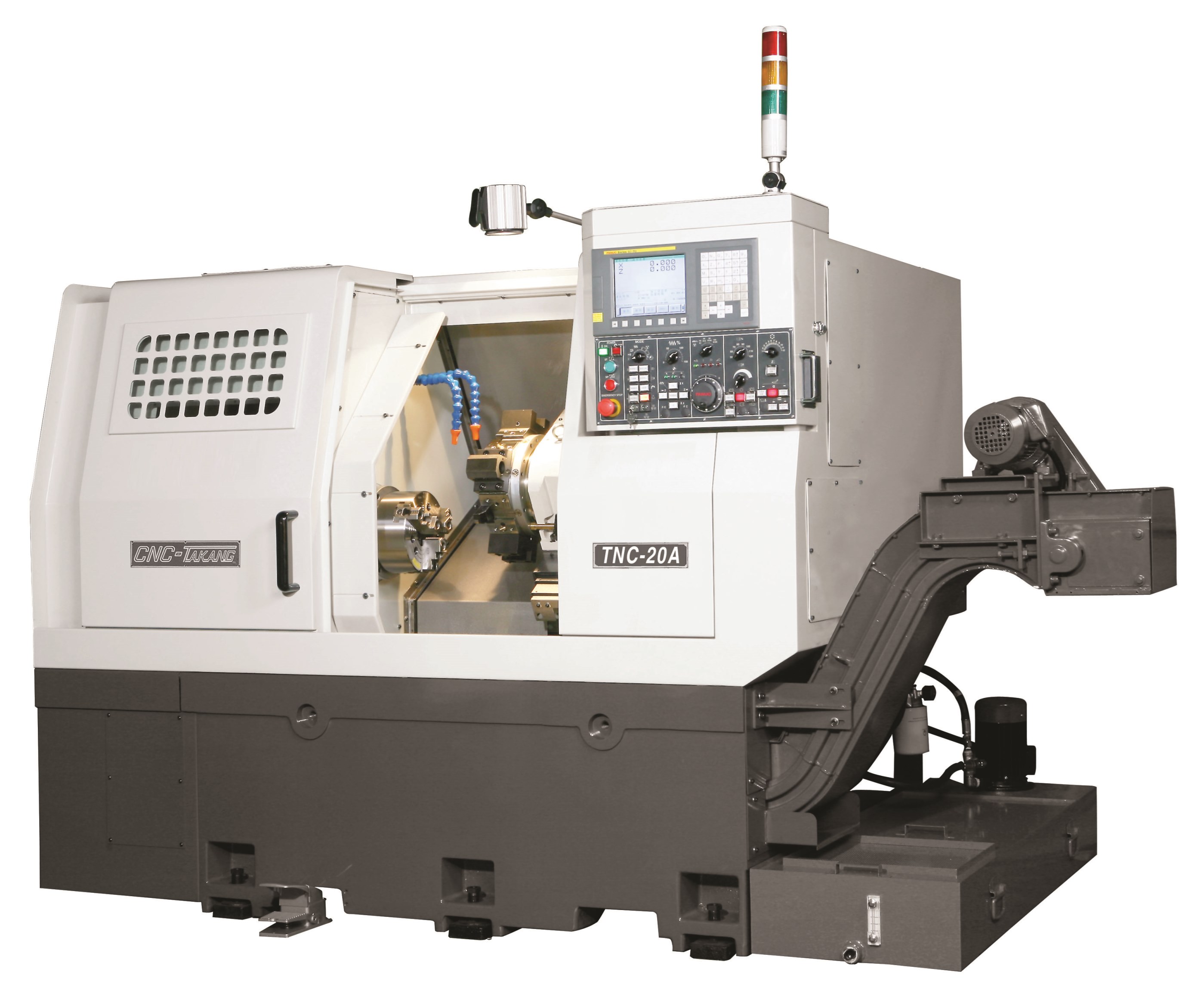

TNC-20A / AL	Ø 460 mm (18.1”)	Ø 280 mm (11”)	A2-6	Ø 52 mm (2”) / OPT Ø210 mm (8”)
TNC-N200DS	Ø 600 mm (23.6”)
TNC-N200DS-B	Ø 650 mm (25.6”)

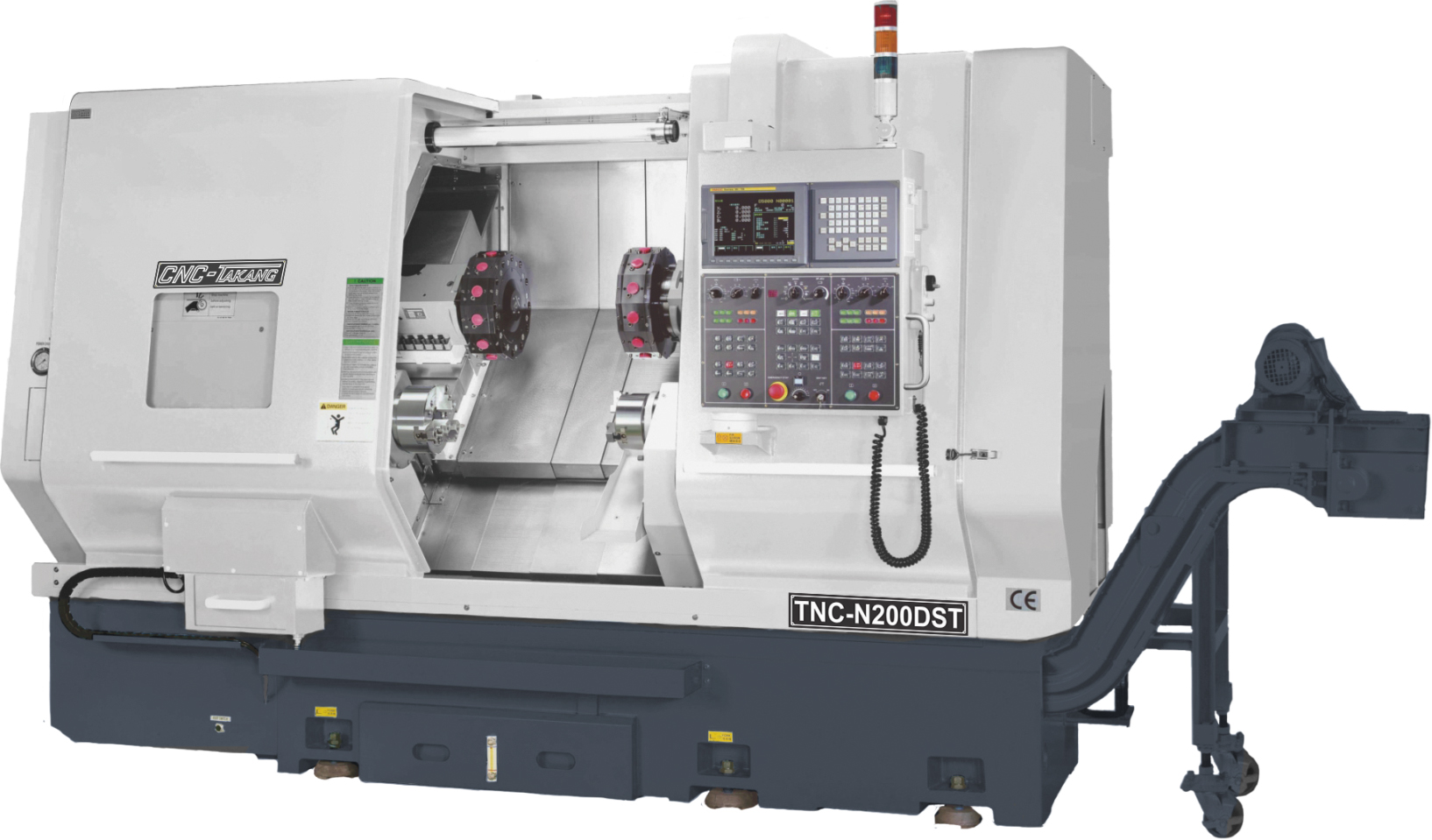

TNC-N200DST	Ø 620 mm (24.4”)
TNC-N200DST-B	Ø 620 mm (24.4”)
TNC-N200	Ø 480 mm (18.9”)		A2-6
TNC-N250	Ø 600 mm (23.6”)		A2-6
TNC-N300	Ø 630 mm (24.8”)		A2-8

※ The specifications are subject to change without prior notice.

CNC-TAKANG offers a comprehensive range of slant bed CNC lathes designed for high precision and heavy-duty machining. The 45-degree one-piece bed design enhances chip removal efficiency and overall machine stability. Key series include the VR Series, TNC-10/20/30/40 Series, TNC-N Series, and TNC-N200 Series. For instance, the TNC-30N model features a swing over bed of 640 mm (25.2 inches) and a bar capacity of 75 mm (3 inches), making it suitable for various machining tasks.
These lathes are engineered with widely hardened and ground slideways, ensuring high accuracy during heavy-duty operations. The 45-degree slant bed structure facilitates efficient chip removal, contributing to smoother machining processes.
