SLANT BED CNC LATHE
SLANT BED CNC LATHE
VR33x860
- Heavy-duty specification with max. cutting diameter 710mm.
- High-Speed indexing and positioning idle time.
- 45 degree slant bed provides easier chip removal.
- The powerful and rigid spindle offer max. speed 2500rpm.
MENU
| Capacity | |
|---|---|
| Swing over Bed | 850mm (33.4”) |
| Swing over cross slide | 660mm (26”) |
| Max. turning diameter | 710mm (27.9”) |
| Working length | 760mm (29.9”) |
| Spindle | |
| Spindle nose | A2-8 |
| Spindle bore | Dia. 105mm (4.1”) |
| Bar capacity | Dia. 89mm (3.5”) |
| Max. spindle speed | 2500 rpm |
| Spindle gearbox step | 2 |
| Turret | |
| Turret type | V10 / Opt. V12 |
| Tool size | 32mm (1.25”) / Opt. 25mm (1”) |
| ID Tool holder dia. | Dia. 50mm (2”) |
| Tailstock | |
| Tailstock travel | 640mm (25.1”) |
| Quill stroke | 100mm (3.9”) |
| Quill diameter | 110mm (4.3”) |
| Taper of center | MT5 |
| Motor | |
| Spindle | 22 / 26 Kw |
| X / Z axis servo motor | 4 / 4 Kw |
| Coolant pump | 0.75 Kw |
| Hydraulic pump | 2.2 Kw |
| Hydraulic chuck size | 12” |
| X / Z axis | |
| X axis travel | 355+25mm (13.97+1”) |
| Z axis travel | 860mm (33.8”) |
| X / Z axis rapid travel | X: 12 M/min Z: 15 M/min |
| X / Z axis ball screw | Dia. 40mm x P6 / Dia. 50mm x P10 |
| Cutting feed rate | 0.001～500 mm/min |
| Dimension | |
| Machine dimension | 5304×2130×2235mm |
| Machine weight NW/GW | 11500 / 11950kgs |
※ The specifications are subject to change without prior notice.

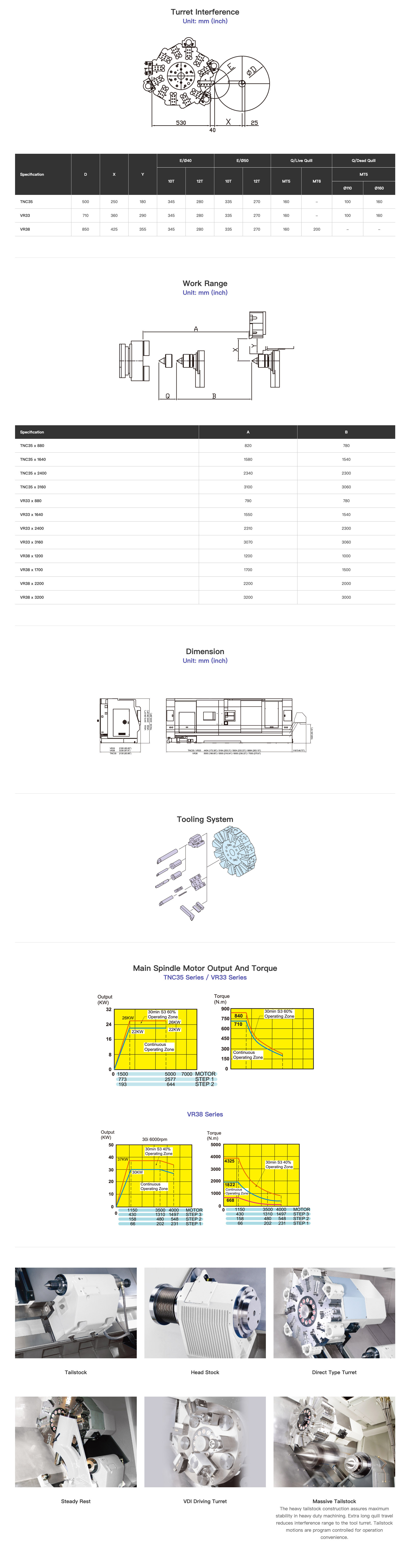

Features
Maximum cutting diameter 710mm
High rigidity & heavy cutting
45 degree inclined bed structure good for chip removal
High rigidity spindle maximum speed 2500rpm
High rigidity & heavy cutting
45 degree inclined bed structure good for chip removal
High rigidity spindle maximum speed 2500rpm
