SLANT BED CNC LATHE

TNC-N200DST-B

Slant bed with wider bedways, provide high accuracy and high performance
Precision ballscrews in each axis, supported by angular roller bearing
High position accuracy and repeatability
Lower thermal deformation and vibration
Forced lubrication system assure longer life time
Automatic chip conveyor for easy chip sweep
Guideways are used by linear motion guideway

INQUIRY

Capacity
Swing over Bed	Ø 620 mm (24.4”)
Max. machining diameter	Ø 440 mm (17.3”)
Max. machining length	Ø 290 mm (11.4”)
Main Spindle(L)
Spindle nose	A2-6
Spindle bearing (ID)	Ø 100 mm (3.9”)
Speed range	42-4200 rpm
Sub Spindle (R)
Spindle nose	A2-5
Spindle bore	Ø 56 mm (2.2”)
Bar capacity	Ø 45 mm (1.8”)
Spindle bearing (ID)	Ø 90 mm (3.5”)
Hydraulic chuck	Ø 169 mm (6.7”)
Speed range	60-6000 rpm
B stroke	500 mm (19.7”)
B axis rapid travel	20 M/min.
Turret
Tool number	L: 12, R: 12 (Servo turret)
X axis stroke: X1	L: 245 mm (9.6”)
X axis stroke: X2	R: 245 mm (9.6”)
Z axis stroke: Z1	L: 342 mm (13.5”)
Z axis stroke: Z2	R: 342 mm (13.5”)
Rapid travel: X1, X2	20 M/min (787 ipm)
Rapid travel: Z1, Z2	20 M/min (787 ipm)
Tool change time	L & R: 0.2 sec
Tool holder	L & R: VDI 30, □ 20 mm
Max. boring bar	L & R: Ø 32 mm (1.3”)

※ The specifications are subject to change without prior notice.

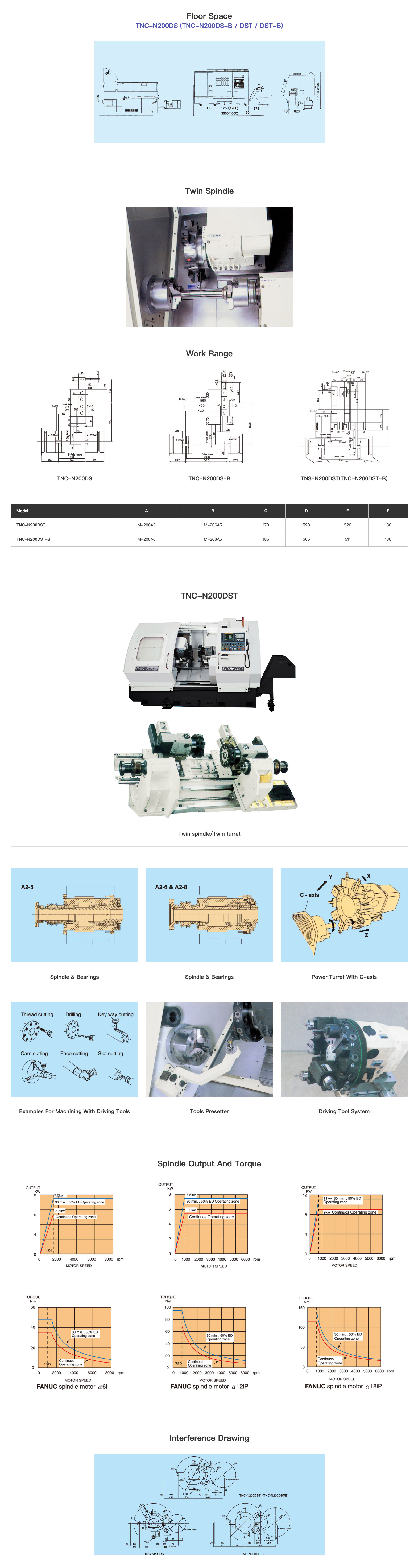

Features

Slant bed with wider bed ways, provide high accuracy and high performance
Precision balls crews in each axis, supported by angular roller bearing
High position accuracy and repeatability
Lower thermal deformation and vibration
Forced lubrication system assures longer lifetime
Automatic chip conveyor for easy chip sweep
Guideways are used by linear motion guideways
