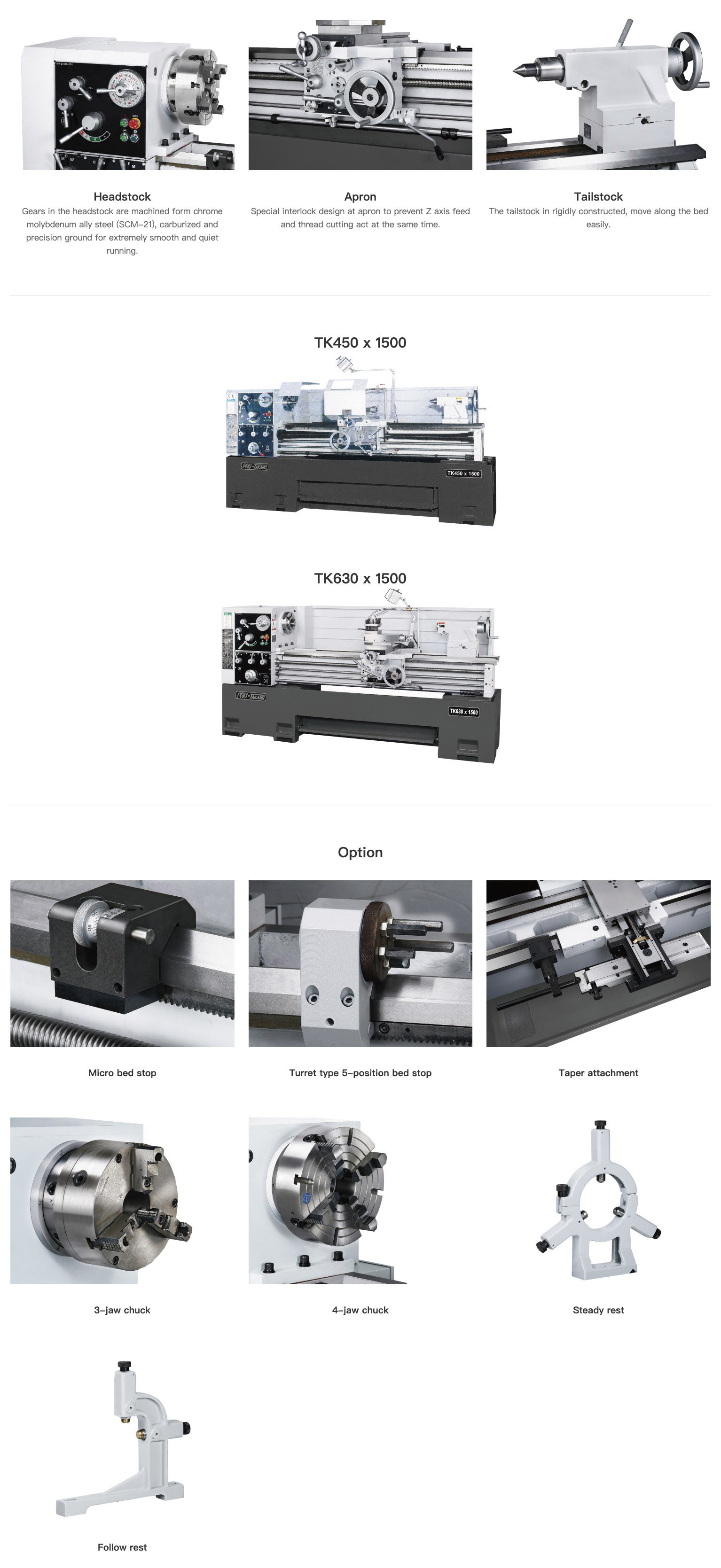

TK630
- Optimal design for excellent turning performance.
- High rigidity one piece cast iron base.
MENU
| Capacity | |
|---|---|
| Swing over Bed | 630mm (25”) |
| Swing over cross slide | 450mm (17.7”) |
| Swing over gap | 810mm (31.9”), Opt. |
| Between centers | 1000mm/1500mm/2000mm/3000mm(40”, 60”, 80”, 120”) |
| Tailstock | |
| Quill dia. / Center taper, mm | 75mm (2.95”) / MT5 |
| Travel | 170mm (6.69”) |
| Headstock | |
| Spindle bore | 85mm (3.3”),105mm (4”) /153mm (6”), Opt. |
| Spindle nose | D1-8, A2-11, Opt |
| Spindle speeds (steps) | 25-1545 rpm (18) |
| Spindle motor | 10 / 15 HP, Opt |
| Threads | |
| Lead screw | 4 TPI or 6 mm / pitch |
| Metric / pitch, range | 0.5 - 7 mm / pitch (24 kinds) |
| Inch, range | 4 - 56 TPI (36 kinds) |
| Module / pitch, range | 0.25 - 3.5 M (16 kinds) |
| DP, range | 8 - 112 P (36 kinds) |
| Feeding Range | |
| Longitudinal feeds | 0.06-0.88 mm/rev |
| Cross feeds | 0.03-0.44 mm/rev |
| Miscellaneous | |
| Bed width | 350mm (13.78”) |
| Cross slide travel | 330mm (13”) |
| Compound rest travel | 150mm (5.9”) |
| Coolant pump motor | 1/8 HP |
※ The specifications are subject to change without prior notice.
