Capacity
Swing over Bed	770 mm (30.3”)
Swing over cross slide	560 mm (22”)
Center height	385 mm (15.2”)
Swing over gap	990 mm (38.9”)
Between centers - 400 mm bed	1500 mm (59”), 2000 mm (78”), 3000 mm (118”), 4000 mm (157”)
Between centers - 460 mm bed	2000 mm (78”), 3000 mm (118”), 4000 mm (157”), 5000 mm (196”)
Gap width from spindle nose	450 mm (17.7”)
Tailstock
Quill Diameter - 400 mm bed	80 mm (3.1”)
Quill Diameter - 460 mm bed	95 mm (3.7”)
Center taper	MT5
Quill travel	230 mm (9”)

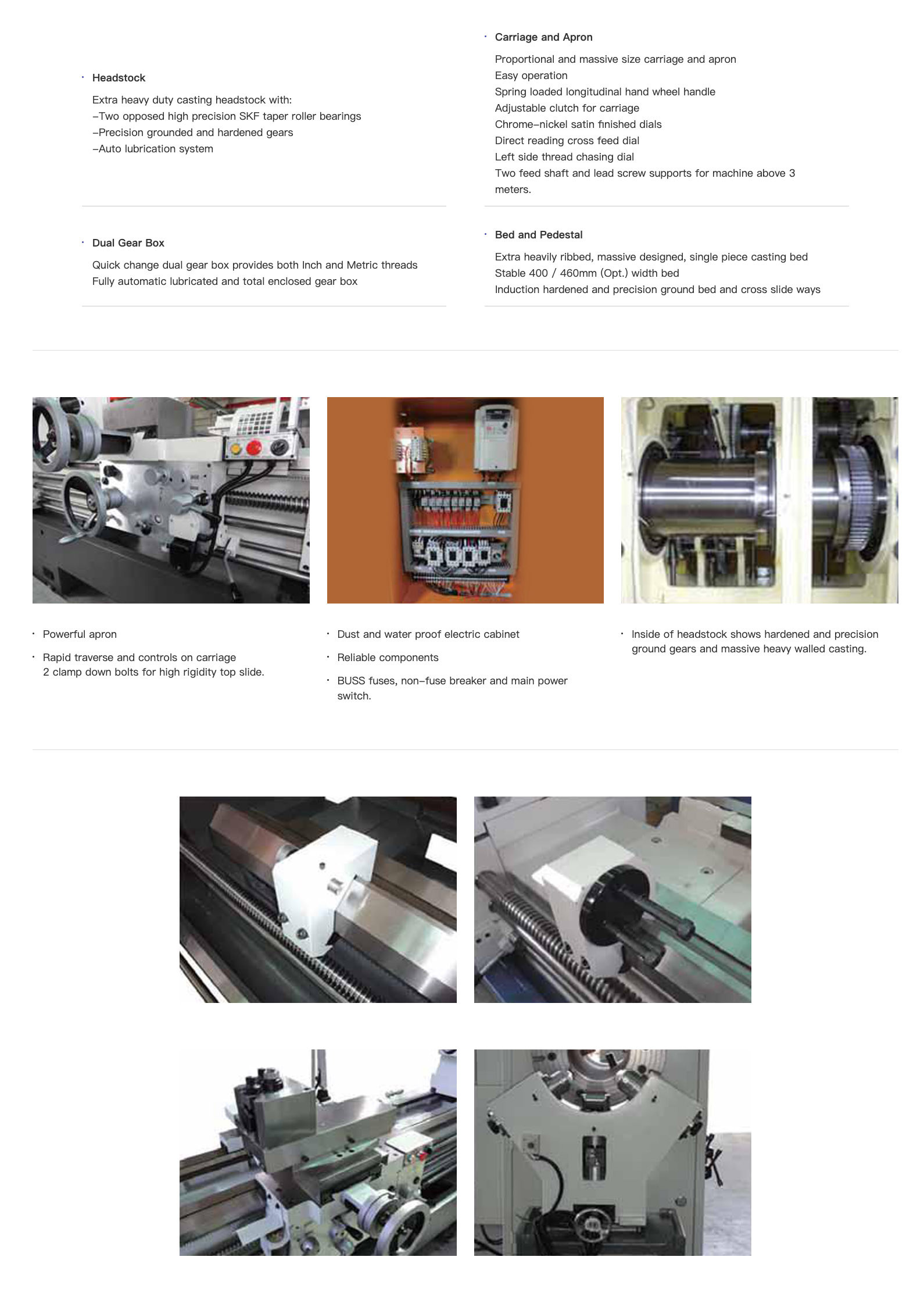

Headstock
Spindle bore, Dia. - 400 mm bed	104 mm (4”), Opt.156 mm (6”) A2-11
Spindle bore, Dia. - 460 mm bed	104 mm (4”), Opt.156 mm (6”) A2-11, Opt. 230 mm (9”) A2-15 (TK770 / 840 only)
Spindle nose	D1-11 or A-11
Spindle speed (rpm)	15-1000,12 steps, Opt. 6” bore:13-800, 12 steps, 9” bore: 10-600, 12 steps
Hydraulic chuck	15HP
Feed and Threads
Cross slide travel - 400 mm bed	385 mm
Cross slide travel - 460 mm bed	435 mm
Cross feeds	0.025-0.35 mm / rev (36 kinds)
Longitudinal feeds	0.05-0.7 mm / rev (36 kinds)
Lead screw diameter	Dia. 45 mm
Lead screw pitch	2TPI (inch) or 12 mm(metric)
Threading range, inch	2-28 TPI (36 kinds)
Threading range, metric	0.8-14 mm (65 kinds)
Module pitch threads	0.5-7M (22 kinds)
DP. pitch threads	4-56P (36 kinds)
Compound rest travel	230 mm (9”)
Tool size	25 x 25 mm
Taper attachment stock (Opt.)	400 mm (15.7”)

※ The specifications are subject to change without prior notice.
