CONVENTIONAL LATHES
MENU

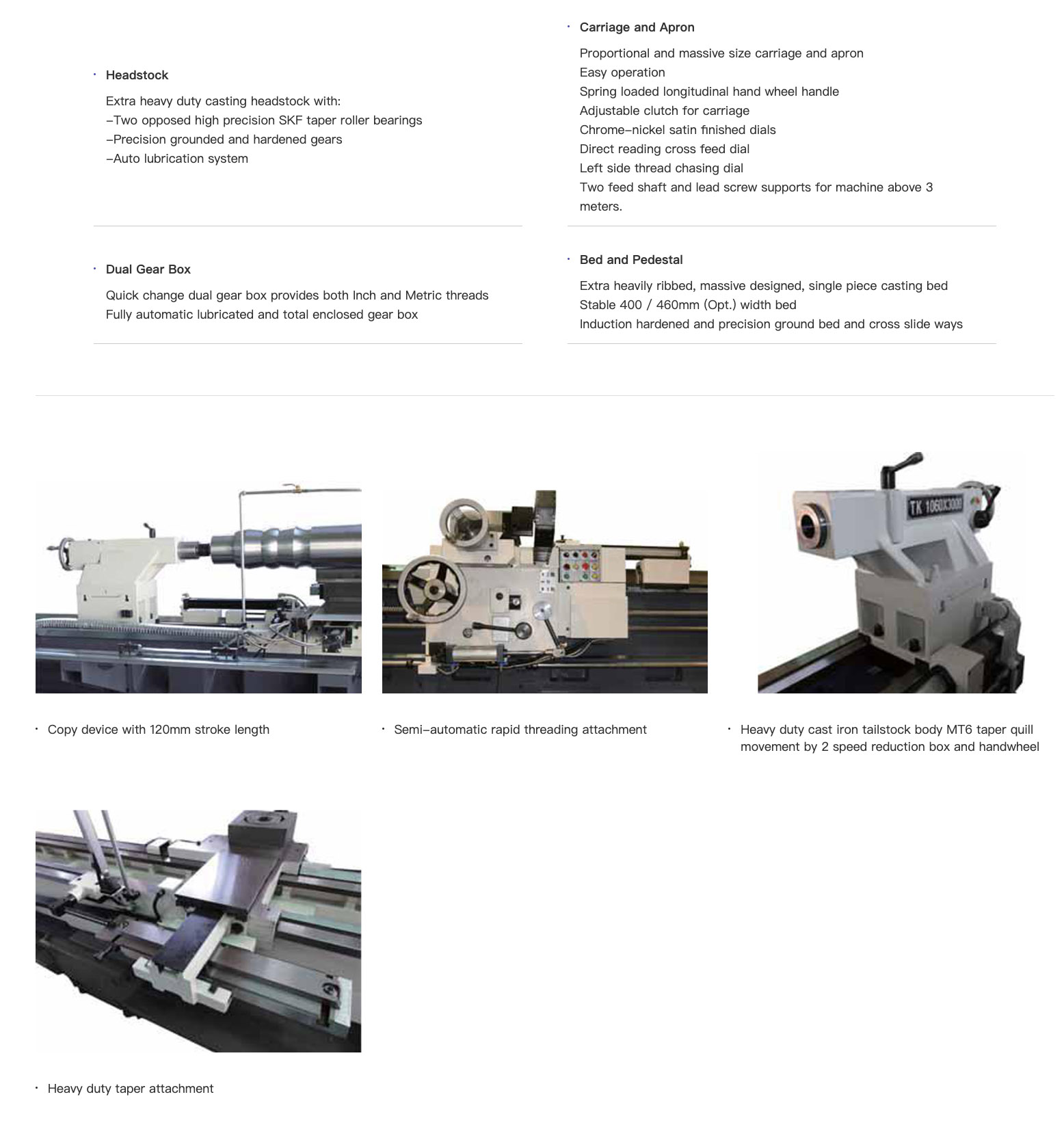

| Capacity | |
|---|---|
| Swing over Bed | 1385 mm (54.5”) |
| Swing over cross slide | 1030 mm (40.5”) |
| Center height | 700 mm (27.5”) |
| Swing over gap | 1950 mm (76.7”) |
| Between centers | 2M, 3M, 4M, 5M, 6M, 7M, 8M, 9M, 10M, 11M, 12M, 13M, 14M |
| Width of gap | 600 mm (23.6”) |
| Between width / Auxiliary guide | 800 mm (31.4”) / 1000 mm (39.3”) |
| Tailstock | |
| Center taper | MT7 |
| Quill diameter | Dia. 200 mm (7.87”) / Opt. Dia. 290 mm (11.41”) rotating type |
| Quill travel | 300 mm (11.8”) |
| Headstock | |
| Spindle bore, Dia. | Dia. 230 mm (9”) / Opt. 310 mm (12”), 360 mm (14”), 535 mm (21”) |
| Spindle nose | A2-15 / Opt. A2-20, A2-28 |
| Spindle speed (rpm), 12 steps | 6-400 / Opt. 5-300, 3-230 |
| Main spindle motor | 30HP / Opt. 40HP or 50HP |
| Miscellaneous | |
| Coolant pump | 1/4 HP |
| Net weight, kgs | 13200 (2M), 14900 (3M), 17050 (4M), 19350 (5M), 21650 (6M), 24000 (7M), 26350 (8M), 29050 (9M), 31050 (10M), 33050 (11M), 35050 (12M), 37050 (13M), 39050 (14M) |
| Feed and Threads | |
| Cross travel | 780 mm (30.7”) |
| Cross feeds | 0.065-0.96 mm / rev (48 kinds) |
| Longitudinal feeds | 0.13-1.92 mm / rev (48 kinds) |
| Lead screw diameter | Dia. 50 mm (1.9”) x 2 TPI |
| Threading range, inch | 1-15 TPI (48 kinds) |
| Threading range, metric | 20-30 mm / pitch (44 kinds) |
| Module pitch threads | 1-15M (32 kinds) |
| DP. pitch threads | 2-30P (48 kinds) |
| Compound rest travel | 320 mm (12.6”) |
| Tool size | 50 x 50 mm (2 x 2”) |
| Rapid motor | 1 HP |
※ The specifications are subject to change without prior notice.
