DOUBLE COLUMN MACHINING CENTER

DCM-2142

Excellent structural rigidity
Optimized spindle box
Optimized Z axis balance system
Optimized feeding system
Optimized feed structure system
Powerful spindle, high cutting capabilities

INQUIRY

Table
T-Slot (W x D x M)	22 mm x 150 mm x 13 (0.86” x 5.9” x 13)
Length	4000 mm (157.4”)
Width	1800 mm (70.8”)
Maximum load	18000 kgs
Travel
Longitudinal travel(X axis)	4200 mm (165.3”)
Cross travel (Y axis)	2100 mm (82.6”)
Vertical travel (Z axis)	800 mm (31.5”) / 1100 mm (43.3”) (opt)
Distance from spindle end to table	75 ~ 875 mm(2.95” ~ 34.4”)
Distance from spindle center to column	430 mm (16.9”)
Distance between columns	2150 mm (86.4”)
Spindle
Spindle taper	BT50
Spindle drive motor(Con./ 30min)	22 kw / 26 kw
Spindle speeds	6000 rpm
ATC
Tool size	Dia. 110 mm (4.3”)
Max. tool size	Dia. 200 mm (7.8”)
Tool storage capacity	24 tools
Max. tool length	380 mm (14.9”)
Max. tool weight	18 kgs
Tool shank & pull stud	BT 50 45˚
Feed
Cutting federate	15000 mm/min
Rapid traverse (X/Y/Z)	15 / 20 / 15
Miscellaneous
Power requirement	40 ~ 50 KVA
Pneumatic requirement	6.5 kgs/cm²
Machine size length	11100 mm(437”)
Machine size width	4850 mm (191”)
Machine size height	4570 mm (180”) / 5470 mm (215.3”)
Machine weight	33 ton

※ The specifications are subject to change without prior notice.

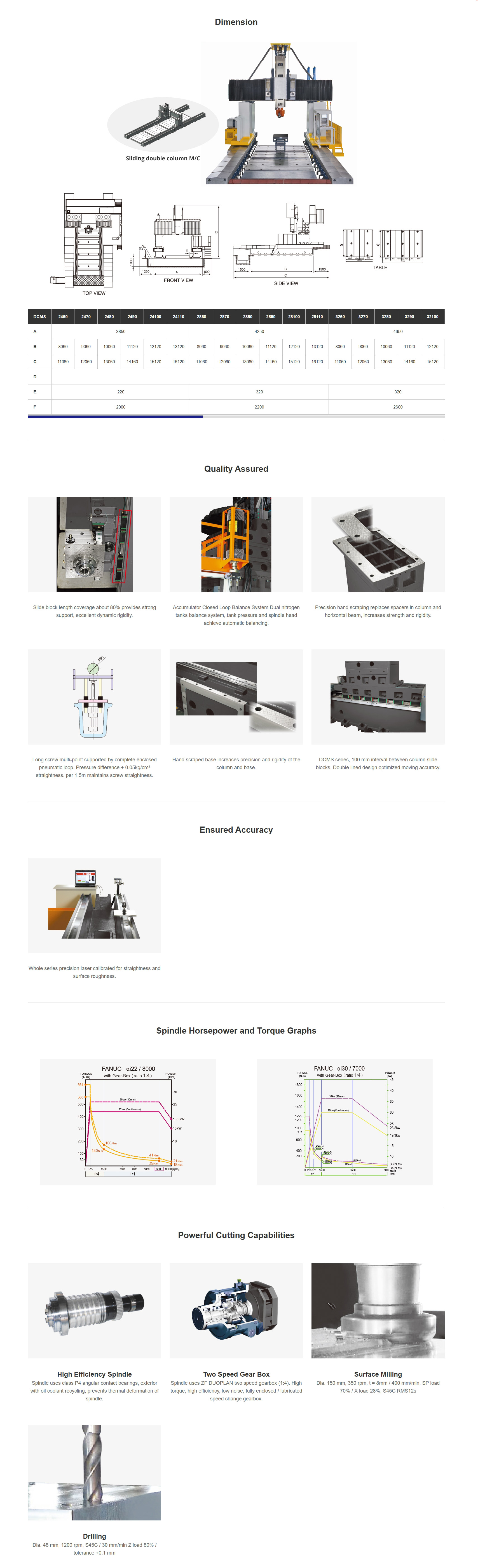

Features

Capable of heavy cutting and high-speed machining
Excellent for precision machining for extra heavy parts
Built with high quality Meehanite cast iron and ductile iron
Roller type linear guide ways on X, Y, Z axis
Direct drive high speed spindle combines with a high/low speed gear box
Accumulator type automatic compensation balancing system on headstock
