BORING MACHINE
BORING MACHINE
CBA-110B
- High accuracy, high quality, high rigidity
- Fully automatic operation
- Spindle made in house
- Ideal for fabricating molds
- High efficiency
MENU
| Travel | |
|---|---|
| Work table travel X axis(Horizontal) | 1500 mm |
| Spindle travel Y axis(Vertical) | 1350 mm |
| Work table travel Z axis(Vertical) | 1000 mm |
| Spindle travel W axis | 400 / 600 mm |
| Spindle | |
| Spindle diameter | Dia. 110 mm |
| Main motor (con/30min) | 22 / 26 kw |
| Spindle speed (Max.) | 4000 / 2500 rpm |
| Spindle tapper | ISO 50 / BT-50 |
| Spindle end diameter | Dia. 215 mm |
| Max. spindle torque | 910 Nm |
| Rotary Table | |
| Table dimension | 1250 x 1250 mm |
| T-slot | 22 x 7 mm |
| Max. loading weight | 4500 kg |
| Index | 0.001° degree |
| Max. rotation diameter | 1768 mm |
| Table rotation speed | 4 rpm |
| Feed | |
| Feed rate(X/Y/Z) | 1 – 5000 mm / min |
| Feed rate(W axis) | 1 – 3000 mm / min |
| Rapid feed(XYZW axis) | XYZ axis = 10000 / W axis = 3000 mm / min |
| Miscellaneous | |
| Machine weight | 17000 kg |
| Power capacity | 80 |
| Machine dimension (L x W x H) | 7355 x 4500 x 3860 mm |
| Controller | Fanuc / Siemens / Heidenhain |
※ The specifications are subject to change without prior notice.

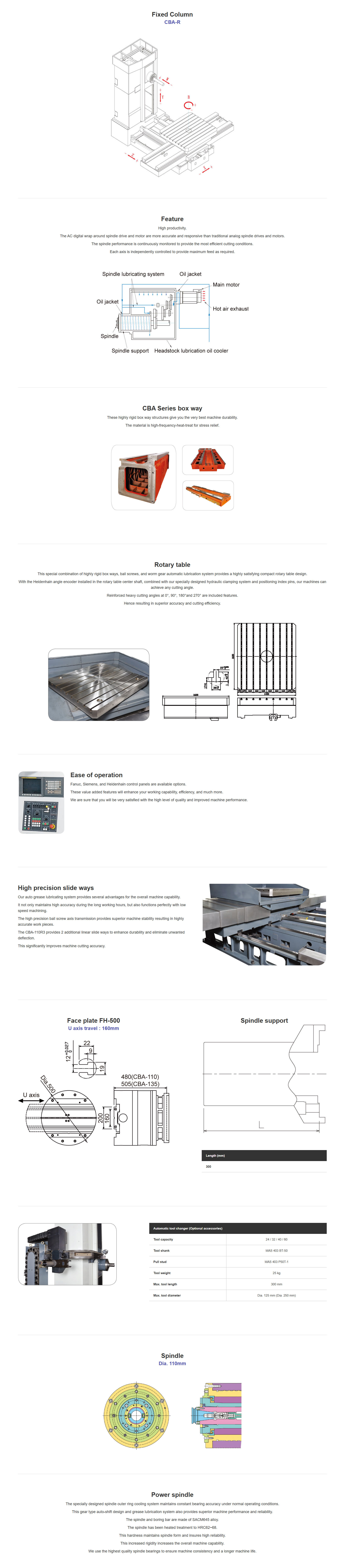

Features
Fully automatic operation
Spindle made in house
Ideal for fabricating molds
High efficiency
Spindle made in house
Ideal for fabricating molds
High efficiency
